Product name:Glass lined Storage Tank（Vertical type)
Show of the picture:


<<-Back to product list

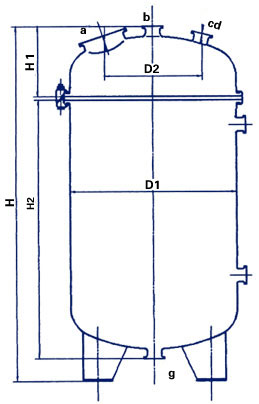

Open type storage tank(K type storage tank)
Consult the standard:HG/T2373-1992

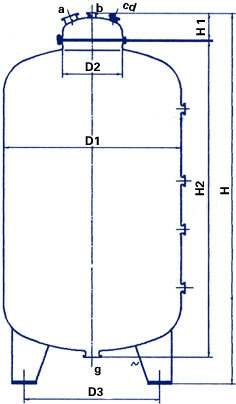

Close type storage tank(F type storage tank)
Consult the standard:HG/T2374-1992



Nozzle Orientation
K200-500L

Nozzle Orientation
K1000-2000L



Nozzle Orientation
F3000-5000L

Overall dimensions and nozzle sizes of glass lined storage tank

Nominal volume L

Actual volume L

Sizes (mm)

Length of level gauge mm

Nozzle sizes

Nozzle length of lever gauge
mm

Approx
Weight

Kg

D 1

D 2

D 3

H 1

H 2

H

a

b

c

d

g

h

K200

258

600

360

420

300

965

1420

460

125

70

70

70

70

\

2-70

236

K300

389

700

420

490

345

1070

1560

525

125

80

70

70

80

\

2-70

408

K500

686

800

480

560

380

1370

2000

800

150

80

80

70

80

\

2-70

544

K1000

1250

1000

600

700

430

1770

2350

1000

150

80

80

80

80

\

2-70

915

K2000

2377

1300

780

910

505

1970

2610

1200

300x400

100

80

80

100

80

2-70

1400

F3000

3740

1600

600

1120

300

2295

2737

1000

125

70

70

70

125

\

2-70

1820

F5000

5981

1600

600

1120

300

3265

3707

2-1200

125

70

70

70

125

\

4-70

2452

F10000

11142

2200

700

1740

345

3337

4097

2-2000

125

80

70

70

125

\

4-70

4220

F20000

22217

2600

700

\

345

4800

5485

3-1800

125

80

70

70

125

\

6-70

7400

F30000

33301

3000

700

\

345

5415

6205

3-2000

125

80

70

70

125

\

6-70

9700

F40000

41709

3000

700

\

345

6585

7375

4-1900

125

80

70

70

125

\

8-70

11260

F50000

51605

3000

700

\

345

7985

8775

4-1900

1-1700

125

80

70

70

125

\

10-70

13200

Main Technical Performance of glass lined Storage Tank

K,F Type Glass linedStorage Tank

Max. Operation Pressure (Mpa)

Operation Temperature (°C)

Glass Lining  Thickness (mm)

High Voltage Test to Glass lining Layer (kv)

Inner of Vessel

0.25

0~150

0.8~2.0

20 (Retest of User: 6)

Remarks: temperature difference Operation Limit for glass lining: cooling shock: 110°C,thermo shock:120°C. (This is Destructive Test).
